Technical specification

Bringing together unparalleled operational experience (>10,000 hours) and real-world learning, the KITE UAS is Kite Aero’s next generation aircraft, built for effective remote unmanned logistics.

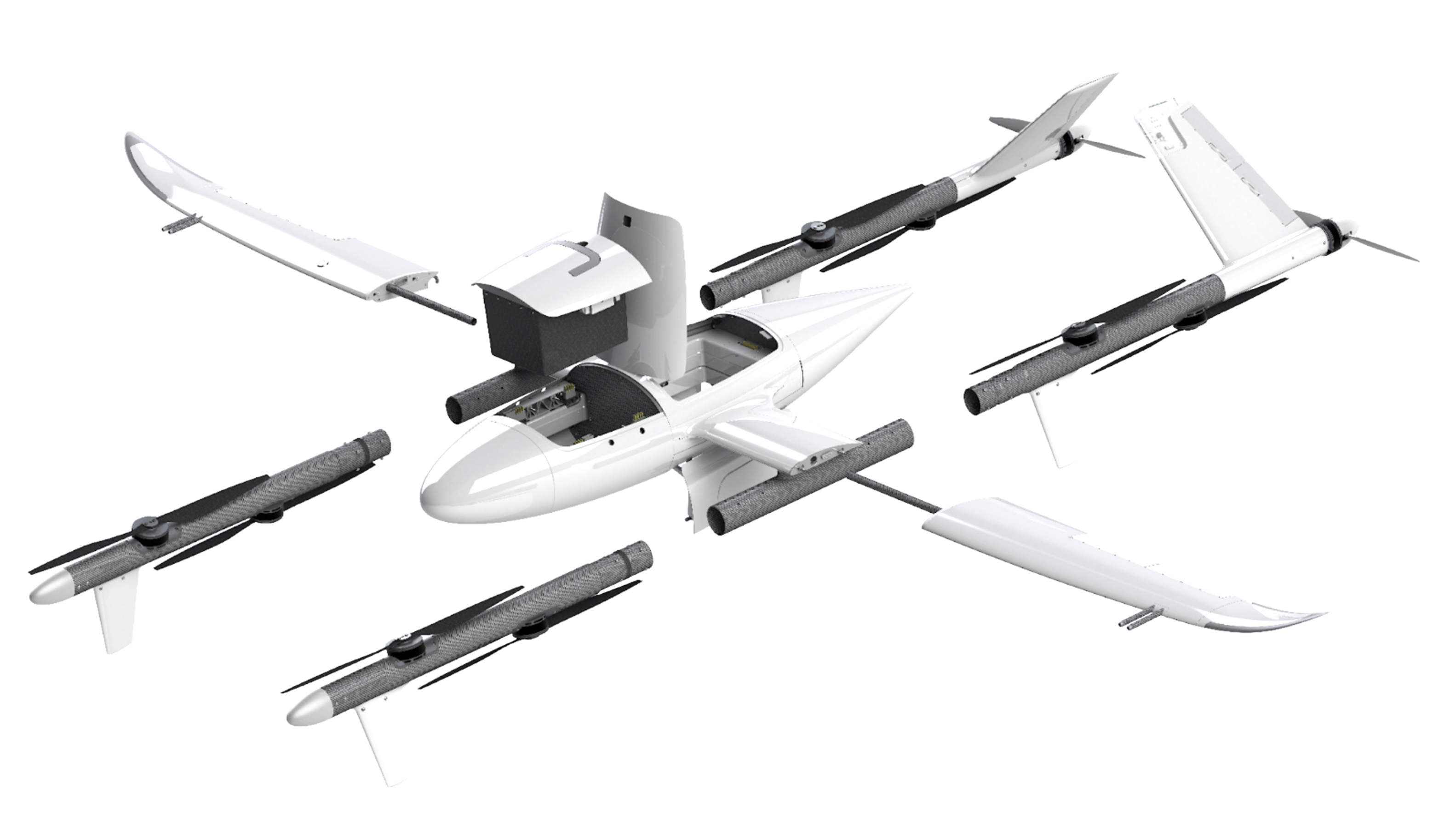

KITE UAS exploded view
240 km
149 miles
One-way range · 2.5 kg payload
115 km
71 miles
Return range · 2.5 kg payload
4 kg
8.8 lbs
Total payload limit*
18 m/s
35 kts
Wind limit
Full specification

Every number that matters.

Units

All specifications at sea level and level flight conditions.

Performance
Aircraft category
Powered Lift | eVTOL
Powertrain
Fully-electric, fully-redundant
Maximum take-off weight*
26.5 kg
58.4 lbs
Maximum payload*
4 kg
8.8 lbs
Cruise speed
115 km/h
62 kts
Max speed
200 km/h
107 kts
One-way range (2.5 kg payload)
240 km
149 miles
Return range (2.5 kg payload)
115 km
71 miles
Operating temperature
-5°C to 45°C
Altitude limit
3,000 m AMSL
9,843 ft AMSL
Wind limit(hover & cruise)
18 m/s
35 kts
Weather limitations
No icing · Light rain (2 mm/hr)
Command & control
SATCOM & LTE
Dimensions
Payload bay
250 × 125 × 205 mm
9.84 × 4.92 × 8.07 in
Wingspan
2.72 m
8.92 ft
Transport case
133 × 98 × 57.5 cm
52.4 × 38.6 × 22.6 in

* In some regulatory environments, operations may need to remain below 55 lb or below 25 kg. Meeting that regulatory category may require a lower maximum payload. This is a regulatory classification, not an aircraft limit.

Note: all specifications above as at sea level and level flight conditions.

Published one-way and return ranges are specified with a 2.5 kg / 5.5 lb payload. Total payload capacity is up to 4 kg / 8.8 lb.
